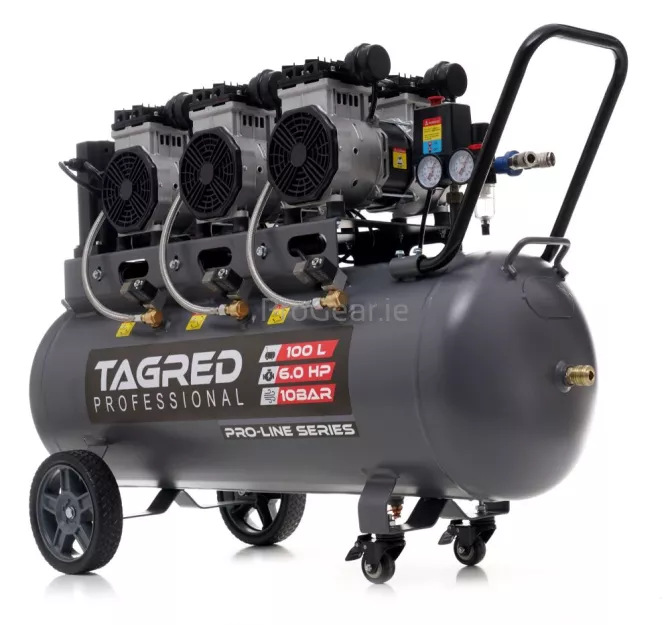

Oil-free compressor TAGRED TA3389 10 BAR 100L 6-piston powerful, quiet

Extreme performance and power!!! Oil-free compressor with six pistons, 100L compressor from the TAGRED brand 3x2000W = 6000W! R6 (3 pumps with 3 pistons in a row arrangement), 10 BAR‼ ☞Compressor factory-set to 10 BAR from the start☜
Max. pump compression power 12 BAR
Included: oil separator, premium-class filters + quick coupler directly screwed into the tank!

  • Add feedback:
  • Code: TA3389
  • Manufacturer: Targed
  • Availability: in stock in stock  (20 pcs.)
  • €1,199.00
  • pcs.
  • Paypal, Bank Transfer

Always Safe and Free Shipping.

Always Safe and Free Shipping.

The product is covered by a two-year warranty.

What sets TAGRED oil-free air compressors apart from competing offers:

  • Extreme performance and power

  • High work culture, comfort, and user-friendliness

  • Very quiet operation

  • Eco-friendly = oil-free!!! No oil particles in the compressed air – ideal for tasks requiring clean air

  • 6-piston – six air pumps built with a connecting rod, Teflon ring, cylinder, and valve plate, ensuring virtually maintenance-free operation

  • Increased finning of the heads – better heat dissipation

  • Reinforced pistons and piston rings with low friction coefficient made of high-quality materials

  • Modern electric motor preventing device vibrations – with symmetrically placed eccentric wheels, bearings, and connecting rods on the rotor

  • 2-in-1 – equipped with an oil separator and pressure reducer that stops water in the expelled air

  • Equipped with two clear pressure gauges, one of which is combined with the reducer and dehydrator

  • Ergonomic – features a pressure reducer with an innovative adjustment mechanism, large manometer positioned for easy reading, and a convenient drain valve for use

  • Economical – thanks to its modern design, it is more efficient and consumes significantly less power compared to oil compressors. It doesn't require oil servicing and lacks components like: connecting rod pins, bushings, heavy flywheels, fans, belts, chamber vents, and unloaders, making the compressor lighter, less vibrating, and free from extra costs

  • Mobile – lightweight, with wheels and an easy-to-carry handle for easy mobility

  • Durable, metal transport handle with a rubberized, non-slip finish

  • Free oil-resistant, corrosion-resistant, and mechanically durable quick coupler directly screwed into the tank

  • Homologated tank welded numerically by welding robots – perfect weld quality! Reinforced design with additional corrosion-resistant coating.

High work culture, safety, and comfort – ease and simplicity of use are just some of the advantages of the latest TAGRED oil-free compressor line, the TAGRED STEALTH SERIES. TAGRED oil-free compressors are necessary when compressed air must not be contaminated with oil. Our compressors operate much quieter, are smaller, lighter, and therefore more mobile than traditional oil compressors.

Quiet oil-free compressor – a professional source of clean, oil-free air. A reliable and quiet pump that can easily be placed in an office, clinic, or next to machinery without adding the discomfort caused by loud operation.

The heads are equipped with an air filter with an efficient ventilation system – this solution allows for maximum efficiency from a relatively compact compressor, along with separate safety valves.

The TAGRED oil-free compressor features a functional and practically maintenance-free piston-membrane assembly. This design ensures that the air compressor operates very quietly and efficiently, suitable for both workshop and home use.

In the offered compressor, there is no need to check oil levels or change the oil, nor to tighten the heads. Additionally, the design is highly resistant to mechanical damage and efficiently dissipates heat to the surroundings.



Product safety information Manufacturer information

Offered set contents:

  • 1x 100L air compressor

  • 2x wheels + screws

  • 2x swivel wheels

  • 6x air filters

  • Pressure reducer + dehydrator

  • 2x 1/4" quick couplings (mounted)

  • 1x quick coupling (free gift)

Technical specifications:

  • Model: TA3389

  • Working pressure: 10 bar

  • Max. pump compression power: 12 BAR

  • Number of pistons: 6

  • Tank capacity: 100 liters

  • Max. motor speed: 2850 rpm

  • Max. motor power: 3x 2000W = 6000W / 8.2 HP

  • Effective performance:

    • Effective performance at 1 bar: 911 L/min

    • Effective performance at 4 bars: 675 L/min

    • Effective performance at 8 bars: 450 L/min

  • Voltage: 230 V ~ / 50 Hz

  • Length: 108 cm

  • Height: 78 cm

  • Width: 41 cm

  • Weight: 70 kg

6-piston – six air pumps made with a connecting rod, Teflon ring, cylinder, and valve plate, ensuring virtually maintenance-free operation.

  • Increased finning of the heads – better heat dissipation.

  • Reinforced pistons and piston rings with low friction coefficient made of high-quality materials.

  • Modern electric motor preventing device vibrations – symmetrically placed eccentric wheels with bearings and connecting rods on the rotor.

Only our compressors are equipped with a highly corrosion-resistant, mechanically durable quick coupling directly screwed into the tank! It is included in the compressor packaging for self-installation.

This solution provides access to a large and immediate volume of air, unrestricted by switches or filters, making it ideal for tasks like blowing, truck tire inflation, or powering large pneumatic wrenches.

The compressor is equipped with two clear pressure gauges. One is combined with the pressure reducer and oil separator/dehydrator.

  • Durable, metal transport handle

  • Homologated tank welded numerically by robotic welders – perfect weld quality!

Why are TAGRED compressor pumps better than the competition?



TAGRED: Large motor provides greater power and the ability to operate continuously without issues of overheating or motor failures.

OTHERS: Small motor Ø92-118mm, does not provide sufficient power, quickly becomes overloaded, leading to overheating and motor damage.

TAGRED: Large cooling fan provides 20-30% more cooling. More cooling air means lower pump temperature during operation, significantly extending its lifespan.

OTHERS: Small fan Ø90-115mm, low airflow, no pump cooling capability, easily overheats, which can lead to a fire. High temperature also significantly shortens the pump's lifespan.

TAGRED: Larger crankcase, about 30% more cooling holes, ensures better airflow throughout the motor, allowing cooling of every part of the pump. This translates into increased lifespan and work efficiency.

OTHERS: Small crankcase. Lack of adequate cooling holes, no airflow through the entire casing. They easily overheat, reducing work efficiency and leading to serious motor failures.




Ask a question about the product. Our team will be happy to provide a detailed answer to your inquiry.
