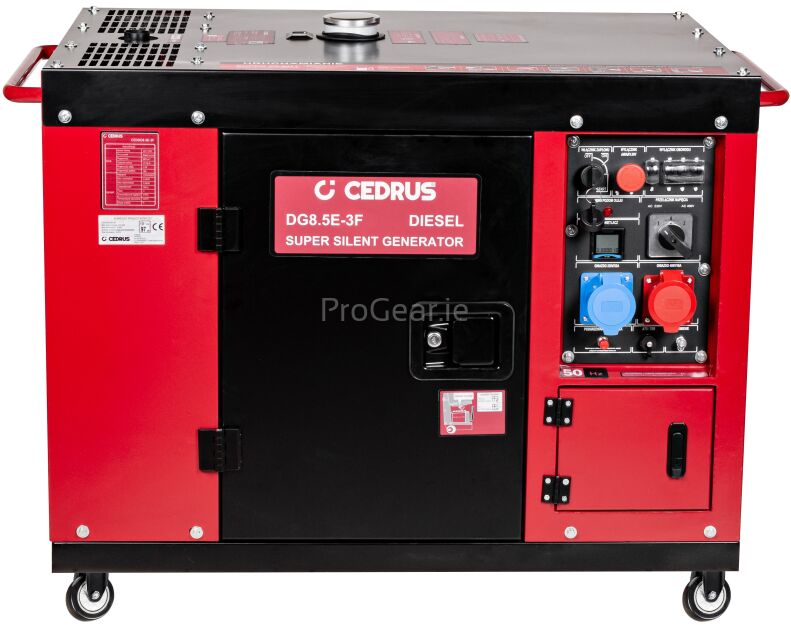

CEDRUS DG8.5E-3F POWER GENERATOR 8.5kW / 18 HP 230/400V AVR SILENT VERSION CEDRUS 8.5 kW KD1100F DIESEL

CEDRUS DG8.5E-3F is an enclosed 3-phase power generator that can be equipped with ATS / SZR automation.
Thanks to the new U-type air channel design, through which all inlet and outlet air passes, an acoustic insulation effect is achieved.

Cedrus 8.5 kW KD1100F Diesel Power Generator

Diesel-powered generators are often chosen for emergency power supply systems. When the ATS (SZR) automation detects a voltage drop in the grid, the generator automatically starts. Once the voltage in the grid is restored, the generator shuts down on its own.

Its versatile application allows the generator to be used in various situations for extended periods. The specially designed three-phase alternator with copper winding ensures reliable operation.

Innovative Dual Power technology guarantees identical output power in both phases (230 V / 380 V), enabling the operation of both single-phase and three-phase devices. A switch located on the control panel allows for easy mode selection.

The fuel system venting system and engine preheating function allow for easy starting, even after a long period of inactivity or in sub-zero temperatures.

The CEDRUS DG8.5E-3F generator, enclosed in a Super Silent casing with a diesel engine, withstands significant loads without power drops. It is ideal for emergency power supply in residential buildings, shops, and businesses where user comfort is a priority.

The unit is equipped with a digital control panel, allowing control of automatic start and stop functions, remote start and stop, as well as measurement parameters. This model is compatible with the automatic transfer switch (ATS) module.

Efficient Euro V Diesel Engine

The single-cylinder, air-cooled engine with a displacement of 667 cm³ delivers a continuous power output of 8 kW (nominal power) and 8.5 kW (starting power). The generator is equipped with an electric starter. The total weight of the generator is 210 kg.

The AVR system (Automatic Voltage Regulation) ensures voltage stabilization, protecting powered devices from fluctuations.

The oil sensor automatically shuts down the generator when oil levels are low, preventing engine damage.

Additionally, our generators are equipped with circuit breakers for added safety.

Features of the DG8E-3F Generator:

• New enclosure design with a thicker base frame for increased structural durability, improved sound insulation, and vibration reduction.
• Alternator with 100% copper winding, F-class insulation, high conversion efficiency, and an intelligent AVR controller for stable voltage and minimal waveform distortion.
• Electric starter for easy operation.
• Super Silent soundproof enclosure for reduced noise levels.
• Digital control panel with an hour meter for precise monitoring.
• Stable operation and up to 15% fuel savings.
• Diesel engine: single-cylinder, air-cooled, 667 cm³, 3000 RPM, Euro V compliant, consuming only approx. 3 liters of fuel per hour.
• Maximum fuel tank capacity: 26 liters.
• Compatible with ATS (Automatic Transfer Switch) for automatic power backup.
• AVR - Automatic Voltage Regulation ensures stable output.
• Copper-wound alternator for durability and efficiency.
• Intelligent overload protection to prevent damage.
• Electric start function for effortless ignition.
• Oil level sensor with automatic engine shutdown.
• Innovative DUAL POWER technology for dual operating modes: 230 V / 380 V.
• Automatic fuel system venting for smooth operation.
• Pre-start engine preheating for reliable cold starts.
• Durable metal fuel tank for longevity.
• Bearings-equipped wheels for easy mobility.
• Optional ATS system connection for automatic power switching during outages.
• Euro 5 emission standard compliance, ensuring maximum efficiency and environmental friendliness.
