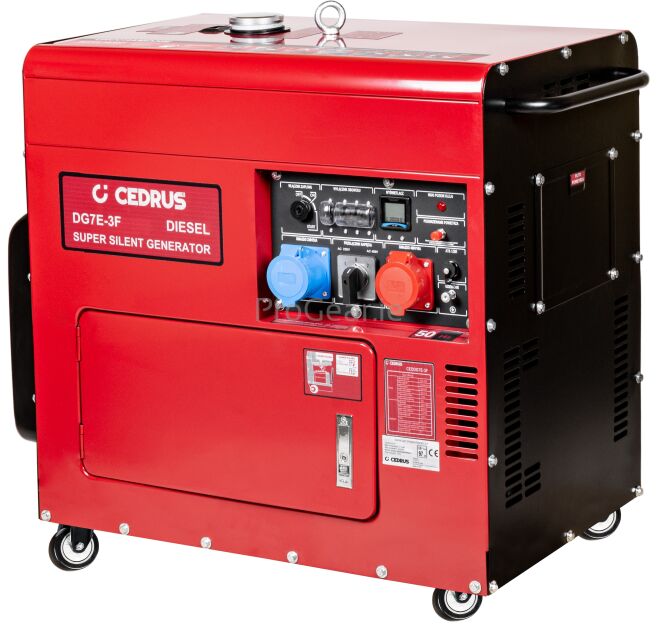

CEDRUS DG7E-3F POWER GENERATOR 7.1kW / 12 HP 230/400V AVR SILENT VERSION CEDRUS 7.1 kW KD195FC DIESEL

The CEDRUS DG7E-3F is an enclosed three-phase power generator that can be equipped with ATS/SZR automation.

Thanks to the new U-shaped air duct design, through which all intake and exhaust air passes, an acoustic insulation effect is achieved.

Cedrus 7.1 kW KD195FC Diesel Power Generator

Diesel-powered generators are often chosen for emergency power systems. When the ATS (SZR) automation detects a voltage drop in the grid, the generator starts automatically, and when the grid voltage is restored, it shuts down on its own.

Versatile applications allow the generator to be used in various situations for extended hours. A specially designed three-phase alternator with copper windings ensures reliable operation.

The innovative Dual Power technology provides identical output power in both phases (230 V/380 V), allowing for the supply of both single-phase and three-phase devices. A switch on the control panel enables easy mode changes.

The fuel system venting system and engine preheating function allow for an easy start, even after a long period of inactivity or in subzero temperatures.

The CEDRUS DG7E-3F power generator, housed in a Super Silent enclosure with a diesel engine, withstands significant loads without power drops. It is ideal for emergency power supply for residential buildings, shops, and businesses, where user comfort is a priority.

The unit is equipped with a digital control panel that allows monitoring of automatic start and stop functions, remote start and shutdown, and measurement parameters. This model is compatible with the automatic transfer switch (ATS) module.

Efficient Diesel Engine Euro V – a single-cylinder, air-cooled engine with a capacity of 532 cm³ generates a constant power output of 6.6 kW (nominal power) and 7.1 kW (starting power). The generator is equipped with an electric starter. The total weight of the generator is 175 kg.

The AVR system ensures voltage stabilization to protect powered devices from voltage fluctuations.

The oil sensor will shut down the generator when the oil level is low, preventing engine seizure.

Additionally, our generators are equipped with circuit breakers.

Features of the DG7E-3F Power Generator:

• New housing design with a thicker base frame to enhance the generator's structural durability while achieving sound insulation and vibration reduction.
• Generator made of 100% copper winding, Class F insulation, high conversion efficiency, and an intelligent AVR controller ensuring stable voltage and reduced waveform distortion.
• Electric starter
• Super Silent soundproof casing
• Digital control panel with an hour meter
• Stable operation and fuel savings of up to 15%
• Powered by a single-cylinder diesel engine, air-cooled, 532 cm³, 3000 rpm, compliant with Euro V emission standards, consuming only about 2 liters of fuel per hour.
• Maximum fuel tank capacity: 30 liters
• SZR (ATS) automation compatibility
• AVR – Automatic Voltage Regulation
• Copper-wound alternator
• Intelligent overload protection
• Electric start
• Oil level sensor with engine shutdown system
• Innovative DUAL POWER technology
• Two operating modes: 230V / 380V
• Super Silent soundproof casing
• Automatic fuel system venting
• Pre-start engine heating
• Metal fuel tank
• Bearing-mounted wheels
• Optional automatic start system (SZR / ATS) in case of power failure
• Engine compliant with the latest EURO 5 emission standards, ensuring maximum comfort of use.

POSSIBILITY OF CONNECTING AN ATS MODULE
The generator is compatible with an Automatic Transfer Switch (ATS) module. The ATS automatically starts the generator in case of a power outage or a drop in voltage in the main power grid.

DIGITAL CONTROL PANEL
It is equipped with a microprocessor that allows control of functions such as automatic start and shutdown, remote start, and shutdown in case of exceeding critical parameters. The digital display shows real-time power parameters, voltage, and operating time (hour meter).

ENLARGED FUEL TANK
Allows for extended continuous operation on a single refueling.

SUPER SILENT SOUNDPROOF HOUSING
Reduces noise levels, making long-term use much more comfortable.

ELECTRIC START
With a built-in electric starter and battery, the generator can be started by simply turning the key, eliminating the need for a pull cord.

DUAL POWER 230V/380V
Innovative Dual Power technology ensures identical output power in both phases (230V/380V). A switch on the control panel allows for easy mode adjustment.
